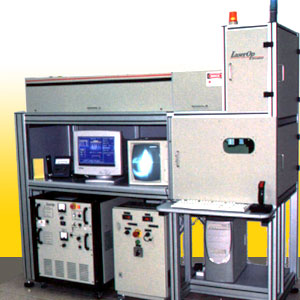

Princess

Laser System:
Q-Switched Nd:Yag Lee Laser Model 818TQ
Wavelength 1.06nm
Transverse mode TEMoo
Average Output Power @ 3KHz 13W
Pulse width (nominal at 3 KHz) 90 ns
Peak Pulse Power (at 1 KHz) 50KW
Pulse Stability (peak to peak) 5%


Beam Delivery System
High quality optics
Easy to align and maintain
CCD camera and B/W monitor with crosshair.

Moving Table
X-Y-Z with Stepper motors
Travel: 50mm
Limit switches: hardware and software
State-of-the-Art controller and drivers.
Computer: Pentium II or up
Keyboard and Joystick

Stone Mounting: Unique manipulator

Safety Enclosure: Class I

Utilities
Electricity 20 +10% VAC, 3-phase, 50/60 Hz, 30A
OR 380 +10% VAC, 3-phase, 50/60 Hz, 20A
Cooling Tap Water 20 lpm at 200 C(680F) max temp.
> 2.5 bar (35 psi) pressure


Options
Longer travel for the XY stages
Red light pointer for ease of laser alignment
Modem connection to LaserOp service center

System Dimensions: 200X70X185 (LxWxH) cm

Note: LaserOp reserves the right to modify the above specification without advanced notice.
